RE: How to change the color of your gauge LEDs - 9/27/2006 3:31:46 PM

CantBeatRidin600f4i

Posts: 108
Joined: 6/20/2006
Status: offline

quote:

ORIGINAL: Ocelaris

Well, they're a standard size called "PLCC" they are of the SMD variety. So SMD PLCC is what you want. e-led or lc-led or the electronic goldmine is where I get mine. .50$ for a blue, .80$ for a white at the electronic gold mine

i know there plcc about there are mutiple sizes in these? i just want to know the exact size.

(in reply to Ocelaris)

Post #: 46

RE: How to change the color of your gauge LEDs - 9/27/2006 10:23:48 PM

Ocelaris

Posts: 189
Joined: 8/22/2006
Status: offline

Yes, there are different sizes, but really any PLCC will work, as the length is usually the same. I've done some comparisons here for you, price and MCD (MCD = MilliCandellas, the more the brighter)
____________________________________________________________
white is a tad narrower at .90$ a piece MCD unknown
http://www.goldmine-elec-products.com/prodinfo.asp?number=G16010

where as blue is standard size at .45$ a piece MCD unknown
http://www.goldmine-elec-products.com/prodinfo.asp?number=G13706

_______________________________________________________________________
eled.com has the most variety of any site:

They call them PLCC2 and have two different sizes under the "Single Color - Top Emitting - PLCC2" category
PLCC2 - 3.5mm x 2.8mm LED white = (150mcd) = 0.40 / PCS, high brightness (800mcd) = .68 / PCS

PLCC2 - 3.0mm x 2.0mm LED white = (150mcd) = 0.40 / PCS, high brightness (800mcd) = .76 / PCS

http://www.eled.com/category.asp?catalog%5Fname=LEDs&category%5Fname=Single+Color+SMD+LED&Page=1

Of all these categories:
Sub-Category
Single Color - Axial - Gull Wing LED
Single Color - Top Emitting LED - 0603
Single Color - Top Emitting LED - 0805
Single Color - Top Emitting LED - 1106
Single Color - Top Emitting LED - 1108
Single Color - Top Emitting LED - 1206
Single Color - Top Emitting - PLCC2
Single Color - Top Emitting - High Brightness LED
Single Color - Side Emitting LED – 0802
Single Color - Side Emitting LED – 1104
Single Color - SOT-23 LED
Single Color - SMD Subminiature LED

The PLCC2 are the normal sized and narrow sized decent to work with. The High Brightness are way too big, and all the othres are ridiculous to work with... Literally grains of salt, you need a magnifying glass and reading glasses to work with them. I don't wear glasses normally, but I borrowed some when I replaced all my headunit's 0603 LEDs with white ones.

________________________________________________________________________
LC-LED calls them "Surface Mount LED - Power Top"

http://lc-led.com/Products/department/5

For white, Pricing Information: 15-99 pcs : $1.35 USD
_______________________________________________________________________

Looks like ELED wins by a pretty high margin... Just be careful not to heat the white ones up too much or the phosphor burns and they give off a more greenish hue instead of pure white... other than that, just physically doing it is the only hard part. Buy at least 5 more than you need, you WILL kill or lose a few I guarantee it. Even if you're an expert, They get lost easy.

< Message edited by Ocelaris -- 9/27/2006 10:26:06 PM >

(in reply to CantBeatRidin600f4i)

Post #: 47

RE: How to change the color of your gauge LEDs - 9/28/2006 7:36:36 PM

CantBeatRidin600f4i

Posts: 108
Joined: 6/20/2006
Status: offline

thanks for the sizes and such. i was gonna use the 3.5x 2.8 is there any good companies where i can order just few of each color?

(in reply to Ocelaris)

Post #: 48

RE: How to change the color of your gauge LEDs - 9/28/2006 9:07:31 PM

Ocelaris

Posts: 189
Joined: 8/22/2006
Status: offline

yeah, eled.com there is no minimum, you'll have to pick out the best brightness ones, but you'll have to pick out how many of each you want. I don't think any site has a bag of different varieties, because usually people are pretty particular. What colors do you want? I can probably find you the best ones.

(in reply to CantBeatRidin600f4i)

Post #: 49

RE: How to change the color of your gauge LEDs - 9/30/2006 4:12:40 PM

CantBeatRidin600f4i

Posts: 108
Joined: 6/20/2006
Status: offline

ultraviolet (uv), blue, ultra white see what u can find let me know. i couldnt find a plcc in UV i dont think they make them.

(in reply to Ocelaris)

Post #: 50

RE: How to change the color of your gauge LEDs - 10/1/2006 2:18:32 AM

Chamuko

Posts: 33
Joined: 4/12/2006
Status: offline

done the kawi, rr and my f4i. f4i is the hardest by far... did the other two in 30 min. f4i took me a day.

(in reply to CantBeatRidin600f4i)

Post #: 51

RE: How to change the color of your gauge LEDs - 10/1/2006 2:48:19 AM

Chamuko

Posts: 33
Joined: 4/12/2006
Status: offline

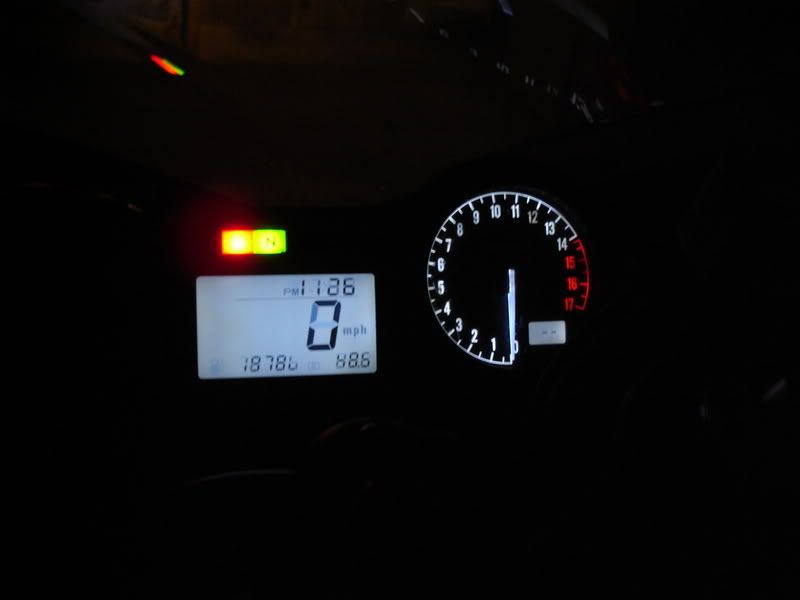

here are some pics.
http://img.photobucket.com/albums/v607/Chamuko/projects/DSC00577.jpg
The problem I have is that the leds are too bright and it slightly fades the lcd in a segment or two.

Also, I have several write ups and fixes i want to share but have not had an opportunioty to... some examples are
the headlight fix

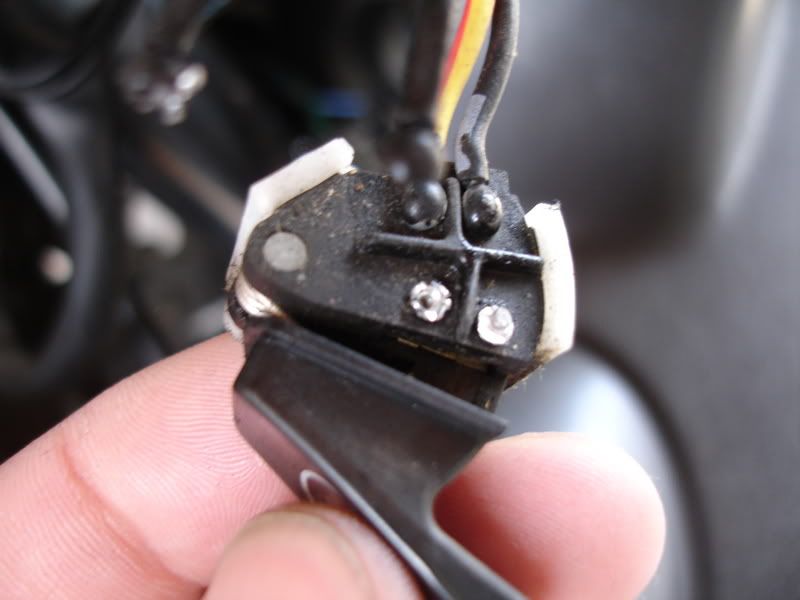

http://img.photobucket.com/albums/v607/Chamuko/projects/ignitionswitch.jpg

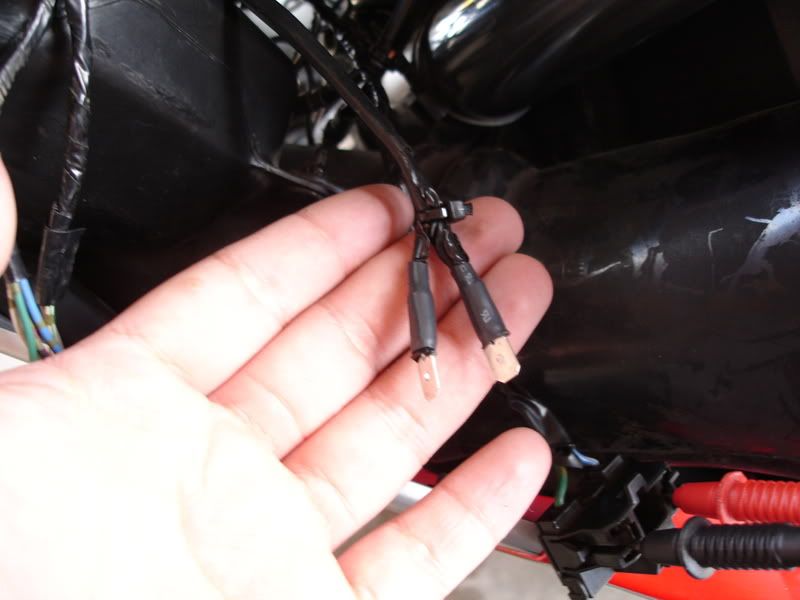

Dual headlight mod
